General information |
|
Model name
|

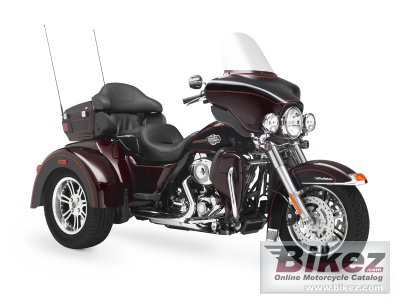

Harley-Davidson FLHTCUTG Tri Glide Ultra Classic |
|
Year of manufacture
|
2011 |
|
Type
|
Allround |
| Price as new | US$ 30499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
1688.0 ccm (103.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Twin Cam 103 |
|
Torque
|
137.0 Nm (14.0 kgf-m or 101.1 ft.lbs) @ 3500 RPM |
|
Compression
|
9.6:1 |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Pressurized, dry-sump with oil cooler |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet, multiplate |
|
Driveline
|
Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 30/70 ratio |
|
Exhaust system
|
2-1-2 exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, square-section backbone with twin downtubes |
|
Rake (fork angle)
|
26.0° |
|
Front suspension
|
Triple Circuit Damping (TCD) front forks |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. Patented fixed front rotor |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Double disc. Dual fixed rear rotor |
|
Diameter
|
229 mm (9.0 inches) |
|
Wheels
|
Black, 7-spoke Cast Aluminum |
|
Physical measures and capacities |
|
Seat height
|
698 mm (27.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2687 mm (105.8 inches) |
|
Ground clearance
|
119 mm (4.7 inches) |
|
Wheelbase
|
1692 mm (66.6 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Oil capacity
|
3.70 litres (3.91 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Cool Blue Pearl, Merlot Sunglo/Vivid Black, Cool Blue Pearl/Vivid Black |
|
Starter
|
Electric |
|
Instruments
|
Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-spe |
|
Electrical
|
Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca battery. Charging: Three-phase, 50-amp system |
|
Factory warranty
|
24 months |
|
Comments
|
Three-wheel specific frame. Optional electric reverse. Rear luggage trunk. Lever actuated dual parking brake. |
