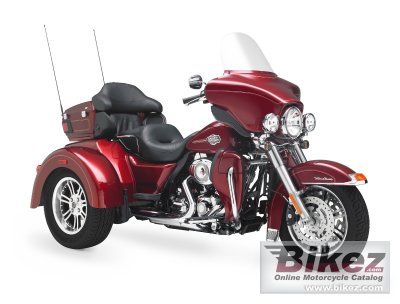

2010 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| The Tri Glide™ Ultra Classic® is a full-feature, factory three-wheel motorcycle built to confidently chase the horizon with long-haul comfort and convenience. |
|
General information |
|
Model
|
Harley-Davidson FLHTCUTG Tri Glide Ultra Classic |
|
Model year
|
2010 |
|
Category
|
Allround |
| Price as new | US$ 29999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
1688.0 ccm (103.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
137.0 Nm (14.0 kgf-m or 101.0 ft.lbs) @ 3500 RPM |
|
Compression
|
9.6:1 |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. ESPFI |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multiplate |
|
Exhaust system
|
2-1-2 exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, square-section backbone with twin downtubes |
|
Rake (fork angle)
|
26.0° |
|
Front suspension
|
Triple Circuit Damping (TCD) front forks |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. Brembo |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Double disc. Hayes Brake dual-disc rear brake system with integrated park brake |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Seat height
|
698 mm (27.5 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Oil capacity
|
3.70 litres (3.91 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Flame Blue Pearl, Red Hot Sunglo, Flame Blue Pearl/Brilliant Silver Pearl |
|
Starter
|
Electric |
|
Comments
|
Three-wheel specific frame. Optional electric reverse. Rear luggage trunk. |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Offroad capabilities for the 2010 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic:
 (45.3 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
