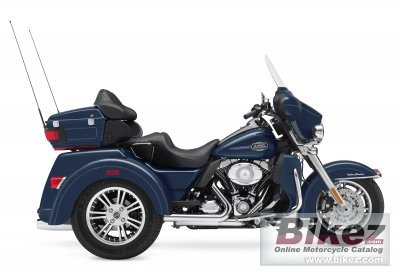

2009 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| Harley-Davidson brings original-equipment design, quality and service to the three-wheel motorcycle segment with the introduction of the 2009 Tri Glide Ultra Classic motorcycle. |
|
General information |
|
Model
|
Harley-Davidson FLHTCUTG Tri Glide Ultra Classic |
|
Year model
|
2009 |
|
Type
|
Allround |
| Price as new | US$ 29999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
131.0 Nm (13.4 kgf-m or 96.6 ft.lbs) |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. ESPFI |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multiplate |
|
Exhaust system
|
2-1-2 exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Triple Circuit Damping (TCD) front forks |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. Brembo |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Double disc. Hayes Brake dual-disc rear brake system with integrated park brake |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Three-wheel specific frame. Optional electric reverse. Rear luggage trunk. |
