General information |
|
Model name
|

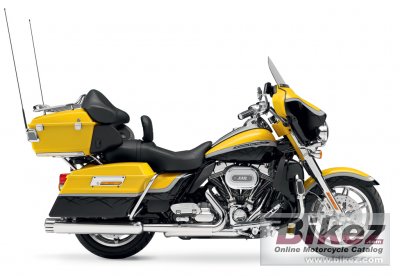

Harley-Davidson FLHTCUSE7 CVO Ultra Classic Electra Glide |
|
Year model
|
2012 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 37249. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1802.7 ccm (110.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 110™ |
|
Torque
|
160.0 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3750 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
101.6 x 111.3 mm (4.0 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump with oil cooler |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio |
|
Fuel consumption
|
5.74 litres/100 km (17.4 km/l or 40.98 mpg) |
|
Greenhouse gases
|
133.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome dual exhaust with 4in. touring mufflers and muffler shields |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3 mm telescopic, triple circuit damping |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm. |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. 4-piston calipers. ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston caliper. ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Mirror Chrome Chisel Custom Wheels |
|
Seat
|
One-piece, two-up Electra Glide® classic comfort stitch seat, sculpted for added comfort and easier straddling. Passenger backrest with wrap-around armrests. |
|
Physical measures and capacities |
|
Dry weight
|
403.2 kg (889.0 pounds) |
|
Weight incl. oil, gas, etc
|
420.5 kg (927.0 pounds) |
|
Seat height
|
706 mm (27.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2510 mm (98.8 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Electric Orange/Black Diamond with
Big City Lights graphics, Crystal Citron/Diamond Dust with Big City Lights graphics, Wicked Sapphire/
Stardust Silver with Big City Lights graphics |
|
Instruments
|
Diamond cut, charcoal finish, fairing mounted electronic speedometer with odometer, resettable trip meter, fuel range countdown, engine diagnostic read-out, 2 in. voltmeter and oil pressure diamond cut gauges, diamond cut tachometer |
|
Electrical
|
Sealed, maintenance-free battery, 12V, 28-amp/hour, 370 cca |
|
Light
|
High beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS |
|
Factory warranty
|
2 years, unlimited mileage. |
|
Comments
|
CVO is ab abbreviation of HD´s Custom Vehicle Operations. |
