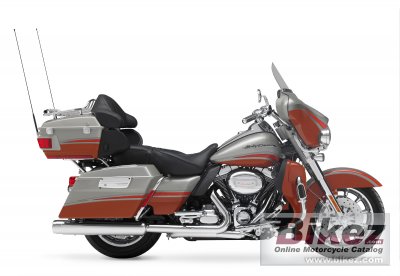

2009 Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide. Picture credits - Harley-Davidson.
Submit more pictures .
Harley-Davidson's profilation of this bike
The CVO Ultra Classic Electra Glide blends custom paint, a potent powertrain and a well-chosen array of top line Harley-Davidson Genuine Motor Accessories, to the all-new 2009 Harley-Davidson Touring chassis. The result is perhaps the most exciting touring motorcycle ever to roll over the horizon.
General information
Model name
Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide
Year model
2009
Type
Touring
Rating
3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike.
Engine and transmission
Engine size
1800.0 ccm (109.84 cubic inches)
Type of engine
V2, four-stroke
Torque
149.0 Nm (15.2 kgf-m or 109.9 ft.lbs) @ 6500 RPM
Compression
9.2:1
Bore x stroke
101.6 x 111.3 mm (4.0 x 4.4 inches)
Fuel system
Injection. Electronic Sequential Port Fuel Injection
Cooling system
Air
Gearbox
6-speed
Transmission type
Belt (final drive)
Clutch
Hydraulically actuated, 9-plate wet, with high performance spring
Exhaust system
Chrome, dual exhaust with touring mufflers,
Chassis, suspension, brakes and wheels
Frame type
New mild steel, single spar rigid backbone with
Rake (fork angle)
26.0°
Trail
170 mm (6.7 inches)
Front suspension
41.3 mm telescopic, cartridge-style damping
Front wheel travel
117 mm (4.6 inches)
Rear suspension
Air-adjustable
Rear wheel travel
76 mm (3.0 inches)
Front tire
130/80-B17
Rear tire
180/65-B16
Front brakes
Double disc. 4-piston calipers
Diameter
300 mm (11.8 inches)
Rear brakes
Single disc. 2-piston calipers
Diameter
300 mm (11.8 inches)
Physical measures and capacities
Dry weight
402.0 kg (886.3 pounds)
Seat height
696 mm (27.4 inches) If adjustable, lowest setting.
Overall length
2494 mm (98.2 inches)
Ground clearance
130 mm (5.1 inches)
Wheelbase
1614 mm (63.5 inches)
Fuel capacity
22.70 litres (6.00 US gallons)
Other specifications
Color options
Ruby Red and Typhoon Maroon with Forge-tone graphics, Autumn Haze and High Octane Orange with Forge-tone graphics; Stardust Silver and Twilight Blue with
Forge-tone graphics
Starter
Electric
Comments
CVO is HD´s Custom Vehicle Operations.
