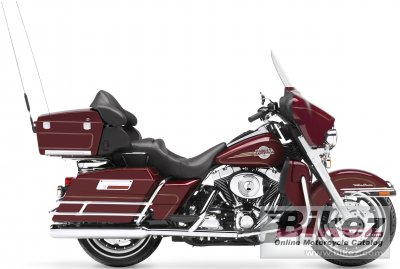

2005 Harley-Davidson FLHTCUI Utra Classic Electra Glide. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| Throw a leg over an Ultra Classic® Electra Glide® touring bike and it’s like having one boot in the east, one in the west, and you are ruler of all lands in between. |
|
General information |
|
Model name
|
Harley-Davidson FLHTCUI Utra Classic Electra Glide |
|
Year model
|
2005 |
|
Type
|
Touring |
|
Rating
|
3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1449.0 ccm (88.42 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
109.0 Nm (11.1 kgf-m or 80.4 ft.lbs) @ 3400 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Exhaust system
|
Crossover duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
26.0° |
|
Front tire
|
MT90-B16 |
|
Rear tire
|
MU85-B16 |
|
Physical measures and capacities |
|
Dry weight
|
372.0 kg (820.1 pounds) |
|
Seat height
|
693 mm (27.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2500 mm (98.4 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1592 mm (62.7 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, sierra red pearl, black cherry pearl, lava red sunglo, glacier white pearl, rich sunglo blue, two-tone rich sunglo blue and chopper blue pearl, two-tone chopper blue pearl and brilliant silver pearl, two-tone black cherry pearl and black pear |
