General information |
|
Model
|

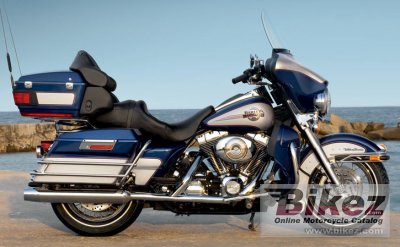

Harley-Davidson FLHTCUI Ultra Classic Electra Glide |
|
Year model
|
2006 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 19795. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1442.2 ccm (88.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
116.6 Nm (11.9 kgf-m or 86.0 ft.lbs) @ 3500 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Fuel consumption
|
5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
|
Greenhouse gases
|
126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, cross-over duals |
|
Chassis, suspension, brakes and wheels |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
357.4 kg (788.0 pounds) |
|
Weight incl. oil, gas, etc
|
371.5 kg (819.0 pounds) |
|
Seat height
|
693 mm (27.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2497 mm (98.3 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
18.92 litres (5.00 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, black cherry, black pearl, deep cobalt, glacier white pearl, rich sunglo blue, brandy wine sunglo, two-tone rich sunglo blue and chopper blue, two-tone chopper blue and brilliant silver, two-tone black cherry and black pearl, two-tone fire re |
