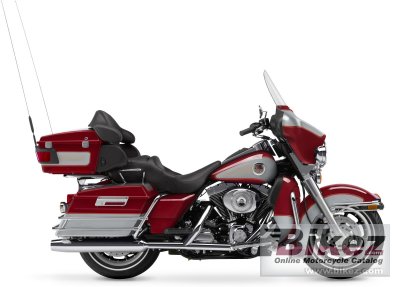

2004 Harley-Davidson FLHTCUI Ultra Classic Electra Glide. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
|
General information |
|
Model name
|
Harley-Davidson FLHTCUI Ultra Classic Electra Glide |
|
Model year
|
2004 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1449.0 ccm (88.42 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
109.0 Nm (11.1 kgf-m or 80.4 ft.lbs) @ 3400 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
158 mm (6.2 inches) |
|
Front tire
|
90/90-16 |
|
Rear tire
|
150/85-16 |
|
Front brakes
|
Double disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
372.0 kg (820.1 pounds) |
|
Seat height
|
693 mm (27.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2500 mm (98.4 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1592 mm (62.7 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, sierra red, luxury teal, luxury blue, glacier white pearl, lava red sunglo, two-tone luxury blue and impact blue, two-tone luxury teal and brilliant silver, two-tone sierra red and brilliant silver, two-tone smokey gold and vivid black |
|
Comments
|
Batwing, fork-mounted fairing; lower fairings with storage compartments; nylon alloy saddlebags and fiberglass King Tour-Pak; 40-watt per channel, 4-speaker AM/FM/CD sound system; CB and intercom ;passenger sound system and CB/intercom controls (CB prohitited by law in some countries); Electronic Cruise Control |
