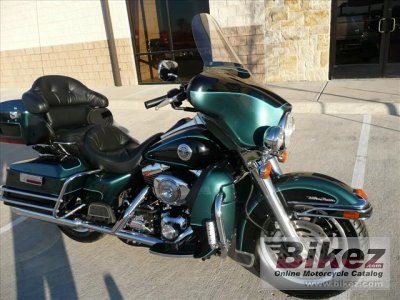

Harley-Davidson FLHTCUI Ultra Classic Electra Glide 20022002 Harley-Davidson FLHTCUI Ultra Classic Electra Glide specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Harley-Davidson FLHTCUI Ultra Classic Electra Glide |
| Year of manufacture | 2002 |
| Type | Touring |
| Rating | 3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1450.0 ccm (88.48 cubic inches) |
| Type of engine | V2, four-stroke |
| Torque | 109.5 Nm (11.2 kgf-m or 80.8 ft.lbs) @ 3300 RPM |
| Compression | 8.8:1 |
| Bore x stroke | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Fuel system | Carburettor |
| Cooling system | Air |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front brakes | Dual disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 385.0 kg (848.8 pounds) |
| Seat height | 693 mm (27.3 inches) If adjustable, lowest setting. |
| Overall length | 2500 mm (98.4 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1592 mm (62.7 inches) |
| Fuel capacity | 18.90 litres (4.99 US gallons) |
| Reserve fuel capacity | 3.30 litres (0.87 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Harley-Davidson FLHTCUI Ultra Classic Electra Glide discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Harley-Davidson. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2002 Harley-Davidson FLHTCUI Ultra Classic Electra Glide for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Harley-Davidson bike | |
Design and look for the 2002 Harley-Davidson FLHTCUI Ultra Classic Electra Glide:  (97.1 out of 100)Click here for complete rating. |
|
