General information |
|
Model name
|

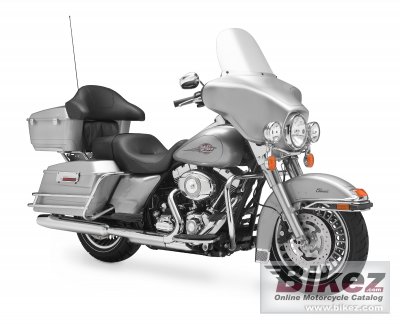

Harley-Davidson FLHTC Electra Glide Classic |
|
Year of manufacture
|
2011 |
|
Type
|
Touring |
| Price as new | US$ 18999. Euro 23785. UK £ 18390. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.1 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Twin Cam 96. |
|
Torque
|
126.0 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multiplate, wet |
|
Fuel consumption
|
5.29 litres/100 km (18.9 km/l or 44.47 mpg) |
|
Greenhouse gases
|
122.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
2-1-2 chrome exhaust with dual mufflers and taper end caps |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel; tubular frame; two-piece stamped and welded backbone; |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3mm telescopic, triple circuit damping |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. 4-piston fixed caliper. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston fixed caliper. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Black, 28-spoke Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
375.1 kg (827.0 pounds) |
|
Seat height
|
739 mm (29.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2496 mm (98.3 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1612 mm (63.5 inches) |
|
Fuel capacity
|
22.70 litres (6.00 US gallons) |
|
Oil capacity
|
3.50 litres (3.7 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Brilliant Silver Pearl,
Merlot Sunglo/Vivid Black,
Cool Blue Pearl/Vivid Black |
|
Starter
|
Electric |
|
Instruments
|
Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-spe |
|
Factory warranty
|
24 months |
