General information |
|
Model name
|

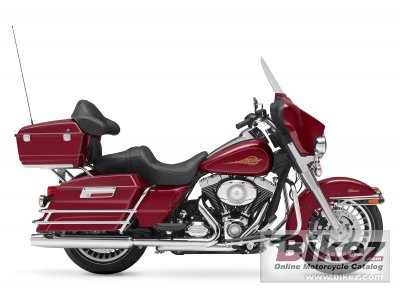

Harley-Davidson FLHTC Electra Glide Classic |
|
Model year
|
2010 |
|
Category
|
Touring |
| Price as new | US$ 18999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
2.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1584.0 ccm (96.66 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
84.0 HP (61.3 kW)) |
|
Torque
|
127.0 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Fuel consumption
|
6.72 litres/100 km (14.9 km/l or 35.00 mpg) |
|
Greenhouse gases
|
155.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
2-1-2 chrome exhaust with dual mufflers and taper end caps |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel; tubular frame; two-piece stamped and welded backbone; |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3mm telescopic, triple circuit damping |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. 4-piston fixed caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston fixed caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
375.0 kg (826.7 pounds) |
|
Power/weight ratio
|
0.2240 HP/kg |
|
Seat height
|
693 mm (27.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2496 mm (98.3 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1612 mm (63.5 inches) |
|
Fuel capacity
|
22.70 litres (6.00 US gallons) |
|
Oil capacity
|
3.50 litres (3.7 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Brilliant Silver Pearl, Flame Blue Pearl, Red Hot Sunglo, Flame Blue Pearl/Brilliant Silver Pearl |
|
Starter
|
Electric |
