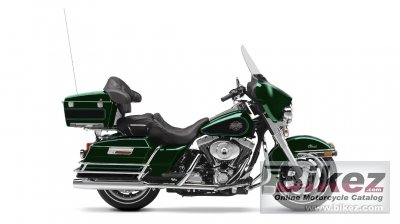

2002 Harley-Davidson FLHTC Electra Glide Classic. Picture by Harley-Davidson. Published with permission..
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Harley-Davidson FLHTC Electra Glide Classic |
|
Year
|
2002 |
|
Category
|
Touring |
|
Rating
|
3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1450.0 ccm (88.48 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
110.0 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 3100 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front brakes
|
Dual disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
352.3 kg (776.7 pounds) |
|
Seat height
|
693 mm (27.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2475 mm (97.4 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1612 mm (63.4 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Reserve fuel capacity
|
3.40 litres (0.90 US gallons) |
|
Other specifications |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Harley-Davidson FLHTC Electra Glide Classic discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Offroad capabilities for the 2002 Harley-Davidson FLHTC Electra Glide Classic:
 (20.5 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
