General information |
|
Model
|

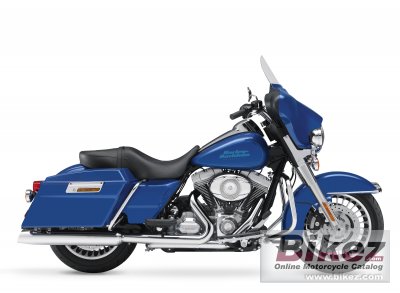

Harley-Davidson FLHT Electra Glide Standard |
|
Year of manufacture
|
2010 |
|
Type
|
Touring |
|
Rating
|
3.2 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
127.0 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
2-1-2 chrome exhaust with dual mufflers and taper end caps |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel; tubular frame; two-piece stamped and welded backbone; |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3mm telescopic, triple circuit damping |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. 4-piston fixed caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston fixed caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
355.0 kg (782.6 pounds) |
|
Seat height
|
740 mm (29.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2460 mm (96.9 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1625 mm (64.0 inches) |
|
Fuel capacity
|
22.70 litres (6.00 US gallons) |
|
Oil capacity
|
3.50 litres (3.7 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Flame Blue Pearl |
|
Comments
|
Silver powder-coated engine with polished treatment covers; “Batwing”,
fork-mounted fairing; Chrome, low-profile fuel tank console; Clear-lens
reflector-optics headlamp; Full-length height adjustable rider footboards;
Full-length height adjustable passenger footboards; Stainless steel, classic
touring handlebars; One-piece, two-up Electra Glide® classic comfort stitch
seat; Clear, Lexan® windshield; Injection-moulded GTX® saddlebags with locks;
ABS as standard |
