General information |
|
Model name
|

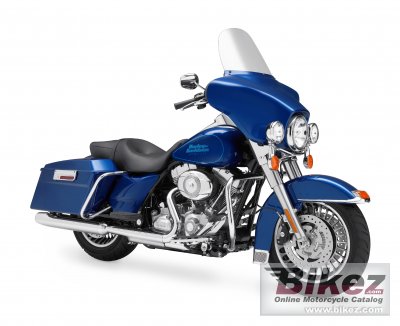

Harley-Davidson FLHT Electra Glide Standard |
|
Year of manufacture
|
2009 |
|
Type
|
Touring |
|
Rating
|
4.0 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
131.0 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
New Two-into-One-into-Two chrome exhaust with |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
New mild steel, single spar rigid backbone with |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
173 mm (6.8 inches) |
|
Front suspension
|
41.3mm telescopic, cartridge-style damping |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. ABS |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. ABS |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
355.0 kg (782.6 pounds) |
|
Seat height
|
715 mm (28.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2640 mm (103.9 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1625 mm (64.0 inches) |
|
Fuel capacity
|
22.70 litres (6.00 US gallons) |
|
Other specifications |
|
Color options
|
Vivid Black, Flame Blue Pearl, Black Denim |
|
Comments
|
Silver powder-coated engine with polished treatment covers; “Batwing”, forkmounted
fairing; Chrome, low-profile fuel tank console; Clear-lens reflector-optics
headlamp; Full-length height adjustable rider footboards; Full-length height
adjustable passenger footboards; New redesigned rider footboard supports for
increased lean angle; Stainless steel, classic touring handlebars; One-piece,
two-up Electra Glide® classic comfort stitch seat; Clear, Lexan® windshield;
Injection-moulded GTX® saddlebags with locks; |
|
Modifications compared to previous model
|
Retuned front and rear suspension for enhanced handling |
