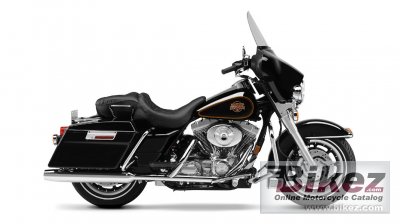

2002 Harley-Davidson FLHT Electra Glide Standard. Picture by Harley-Davidson. Published with permission..
Submit more pictures.
|
|
|
General information |
|
Model name
|
Harley-Davidson FLHT Electra Glide Standard |
|
Year model
|
2002 |
|
Type
|
Touring |
|
Rating
|
3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1450.0 ccm (88.48 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
110.0 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 3100 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front brakes
|
Dual disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
344.1 kg (758.6 pounds) |
|
Seat height
|
693 mm (27.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2378 mm (93.6 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1612 mm (63.4 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Reserve fuel capacity
|
3.40 litres (0.90 US gallons) |
|
Other specifications |
