| Harley-Davidson's profilation of this bike |

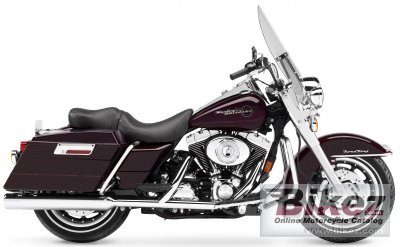

| As anyone who loves logging miles will tell you, the Road King® motorcycle is one roadworthy piece of machinery. Check out the bold, strong profile. Full fenders. Large chrome headlight and nacelle. Two-piece throne. And the always ready Twin Cam 88® engine residing in the center. |
|
General information |
|
Model
|
Harley-Davidson FLHRI Road King |
|
Year model
|
2005 |
|
Type
|
Touring |
|
Rating
|
3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1449.0 ccm (88.42 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
109.0 Nm (11.1 kgf-m or 80.4 ft.lbs) @ 3400 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Exhaust system
|
Crossover duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
26.0° |
|
Front tire
|
MT90-B16 |
|
Rear tire
|
MU85-B16 |
|
Front brakes
|
Double disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
332.0 kg (731.9 pounds) |
|
Seat height
|
693 mm (27.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2440 mm (96.1 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1592 mm (62.7 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, sierra red pearl, smokey gold pearl, black cherry pearl, black pearl, glacier white pearl, two-tone rich sunglo blue and chopper blue pearl, two-tone chopper blue pearl and brilliant silver pearl, two-tone black cherry pearl and black pearl, |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Harley-Davidson FLHRI Road King discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Engine performance for the 2005 Harley-Davidson FLHRI Road King:
 (90.7 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
