Harley-Davidson FLHRC Road King Classic 20122012 Harley-Davidson FLHRC Road King Classic specifications, pictures, reviews and rating |

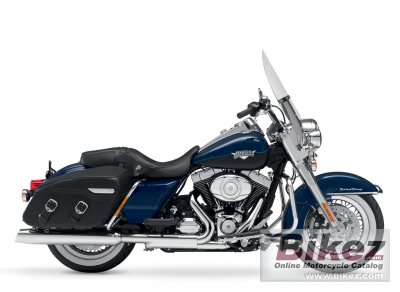

2012 Harley-Davidson FLHRC Road King Classic. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| Part of the unmistakable style of the Harley-Davidson® Road King® Classic motorcycle is plenty of room for showing off your paint. This classically styled, bold six-gallon fuel tank doesn´t just give you a bigger canvas for premium or custom paint; it holds six gallons of go so you can eat up a lot more road between pit stops. |
| General information | |
|---|---|
| Model | Harley-Davidson FLHRC Road King Classic |
| Year | 2012 |
| Category | Touring |
| Price as new | US$ 19599. Euro 22295. UK £ 17399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1688.0 ccm (103.00 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Air-cooled Twin Cam 103™ with Integrated Oil-Cooler |
| Torque | 135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) |
| Compression | 9.6:1 |
| Bore x stroke | 98.4 x 111.3 mm (3.9 x 4.4 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Pressurized, dry-sump with oil cooler |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome, 2-1-2 dual exhaust with slash-up end caps |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded |
| Rake (fork angle) | 26.0° |
| Trail | 170 mm (6.7 inches) |
| Front suspension | 41.3 mm telescopic |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Air-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm. |
| Rear wheel travel | 76 mm (3.0 inches) |
| Front tire | 130/90-16 |
| Rear tire | 180/65-16 |
| Front brakes | Double disc. 4-piston calipers. ABS. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. 4-piston caliper. ABS. |
| Diameter | 300 mm (11.8 inches) |
| Wheels | Steel Laced |
| Seat | Two-up seat with custom stitching |
| Physical measures and capacities | |
| Dry weight | 350.6 kg (773.0 pounds) |
| Weight incl. oil, gas, etc | 367.4 kg (810.0 pounds) |
| Seat height | 678 mm (26.7 inches) If adjustable, lowest setting. |
| Overall length | 2393 mm (94.2 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1613 mm (63.5 inches) |
| Fuel capacity | 22.71 litres (6.00 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | Vivid Black, White Hot Pearl, Big Blue Pearl/Vivid Black, Midnight Pearl/Brilliant, Silver Pearl,• Tequila Sunrise/H-D Orange |
| Instruments | Tank-mounted electronic speedometer with odometer; time-of-day clock on odometer; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light |
| Electrical | Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca |
| Light | Large Hiawatha headlight |
| Factory warranty | 24 months, unlimited mileage. |
| Comments | Sidecar option. Clear, large Lexan® quick-release detachable windshield. Tooled, leather-wrapped hard saddlebags; 1.85 cu. ft. volume. |
