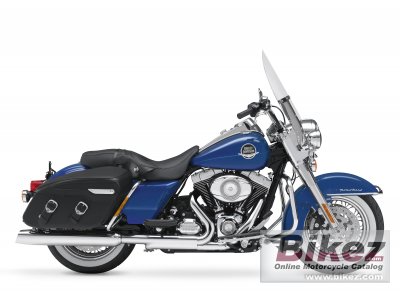

2010 Harley-Davidson FLHRC Road King Classic. Picture credits - Harley-Davidson.
Submit more pictures .
Harley-Davidson's profilation of this bike
The Road King® Clasic offers touring comfort with upscale nostalgic styling, including a tooled leather seat and leather-wrapped saddlebags, wide-whitewall tires and laced wheels.
General information
Model name
Harley-Davidson FLHRC Road King Classic
Year
2010
Category
Touring
Rating
3.1 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike.
Engine and transmission
Displacement
1584.0 ccm (96.66 cubic inches)
Engine type
V2, four-stroke
Torque
127.0 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 RPM
Compression
9.2:1
Bore x stroke
95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves per cylinder
2
Fuel system
Injection. Electronic Sequential Port Fuel Injection
Cooling system
Air
Gearbox
6-speed
Transmission type
Belt (final drive)
Exhaust system
2-1-2 chrome exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type
Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame.
Rake (fork angle)
26.0°
Trail
170 mm (6.7 inches)
Front suspension
41.3mm telescopic
Front wheel travel
117 mm (4.6 inches)
Rear suspension
Air-adjustable
Rear wheel travel
76 mm (3.0 inches)
Front brakes
Double disc. 4-piston fixed caliper
Diameter
300 mm (11.8 inches)
Rear brakes
Single disc. 4-piston fixed caliper
Diameter
300 mm (11.8 inches)
Physical measures and capacities
Dry weight
355.0 kg (782.6 pounds)
Seat height
735 mm (28.9 inches) If adjustable, lowest setting.
Overall length
2400 mm (94.5 inches)
Ground clearance
146 mm (5.7 inches)
Wheelbase
1625 mm (64.0 inches)
Fuel capacity
22.70 litres (6.00 US gallons)
Oil capacity
3.50 litres (3.7 US quarts)
Other specifications
Color options
Vivid Black, Brilliant Silver Pearl, Flame Blue Pearl, Red Hot Sunglo
Starter
Electric
Comments
Black powder-coated engine with chrome treatment covers; Chrome, nostalgic
fuel tank console; Clear-lens reflector-optics headlamp; Full-length height
adjustable rider footboards; Full-length height adjustable passenger footboards;
Stainless steel, “buffalo” handlebars; One-piece, two-up Road King® classic seat;
Clear, large Lexan® quick-release detachable windshield; Leather-wrapped hard
bags; Cruise control; ABS as standard
