General information |
|
Motorcycle name
|

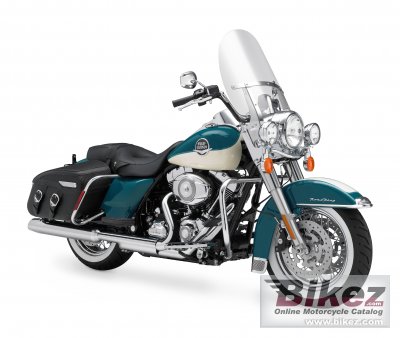

Harley-Davidson FLHRC Road King Classic |
|
Year model
|
2009 |
|
Type
|
Touring |
|
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
131.0 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Exhaust system
|
Two-into-One-into-Two chrome exhaust |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
New mild steel, single spar rigid backbone with |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
173 mm (6.8 inches) |
|
Front suspension
|
41.3mm telescopic |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Handling |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/90-60 |
|
Rear tire
|
180/65-16 |
|
Front brakes
|
Double disc. 4-piston, ABS |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston, ABS |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
355.0 kg (782.6 pounds) |
|
Seat height
|
715 mm (28.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2400 mm (94.5 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1625 mm (64.0 inches) |
|
Fuel capacity
|
22.70 litres (6.00 US gallons) |
|
Other specifications |
|
Color options
|
Vivid Black, Pewter Pearl, Flame Blue Pearl, White Gold Pearl and Pewter Pearl, Deep Turquoise and Antique White; Red Hot Sunglo and Smokey Gold |
|
Starter
|
Electric |
|
Comments
|
Black powder-coated engine with chrome treatment covers; Chrome, nostalgic
fuel tank console; Clear-lens reflector-optics headlamp; Full-length height
adjustable rider footboards; Full-length height adjustable passenger footboards;
New redesigned rider footboard supports for increased lean angle; Stainless
steel, “buffalo” handlebars; One-piece, two-up Road King® classic seat; Clear,
large Lexan® quick-release detachable windshield; Leather-wrapped hard bags;
Cruise control; |
|
Modifications compared to previous model
|
Retuned front and rear suspension for enhanced handling. |
