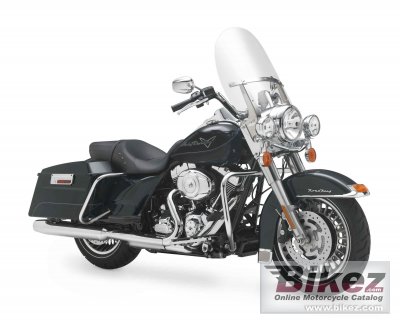

Harley-Davidson FLHR Road King 20122012 Harley-Davidson FLHR Road King specifications, pictures, reviews and rating |
| Harley-Davidson's profilation of this bike |
| Part of the unmistakable style of the Harley-Davidson® Road King® motorcycle is plenty of room for showing off your paint. This classically styled, bold six-gallon fuel tank doesn´t just give you a bigger canvas for premium or custom paint; it holds six gallons of go so you can eat up a lot more road between pit stops. |
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson FLHR Road King |
| Year model | 2012 |
| Type | Touring |
| Price as new | US$ 17499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1688.0 ccm (103.00 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Air-cooled Twin Cam 103™ with Integrated Oil-Cooler. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; |
| Torque | 135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 98.4 x 111.3 mm (3.9 x 4.4 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Pressurized, dry-sump with oil cooler |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary Drive Chain, 34/46 ratio Final Drive Belt, 32/68 ratio |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded |
| Rake (fork angle) | 26.0° |
| Trail | 170 mm (6.7 inches) |
| Front suspension | 41.3 mm telescopic |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Air-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm. |
| Rear wheel travel | 76 mm (3.0 inches) |
| Front tire | 130/80-NW17 |
| Rear tire | 180/65-NW16 |
| Front brakes | Double disc. 4-piston calipers. Optional ABS. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. 4-piston caliper. Optional ABS. |
| Diameter | 300 mm (11.8 inches) |
| Wheels | Black, 28-spoke Cast Aluminum |
| Seat | Two-up seat with custom stitching |
| Physical measures and capacities | |
| Dry weight | 351.5 kg (775.0 pounds) |
| Weight incl. oil, gas, etc | 368.3 kg (812.0 pounds) |
| Seat height | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Overall length | 2413 mm (95.0 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1613 mm (63.5 inches) |
| Fuel capacity | 22.71 litres (6.00 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | Vivid Black, Big Blue Pearl, Midnight Pearl, Ember Red Sunglo/Merlot Sunglo |
| Starter | Electric |
| Instruments | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light |
| Electrical | Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca |
| Light | Large Hiawatha headlight |
| Factory warranty | 2 years, unlimited mileage. |
| Comments | Sidecar option. Clear, large Lexan® quick-release detachable windshield. Injection-molded hard saddlebags, 2.26 cu. ft. volume. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Harley-Davidson FLHR Road King discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
