General information |
|
Motorcycle name
|

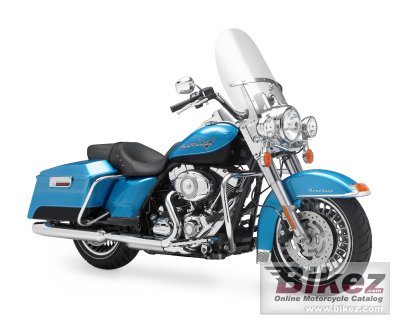

Harley-Davidson FLHR Road King |
|
Year model
|
2011 |
|
Type
|
Touring |
| Price as new | US$ 16999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Twin Cam 96. |
|
Torque
|
126.0 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multiplate |
|
Driveline
|
Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/68 ratio |
|
Exhaust system
|
2-1-2 chrome exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame. |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3mm telescopic |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. 4-piston fixed caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston fixed caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Black, 28-spoke Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
351.5 kg (775.0 pounds) |
|
Seat height
|
693 mm (27.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2413 mm (95.0 inches) |
|
Wheelbase
|
1612 mm (63.5 inches) |
|
Fuel capacity
|
22.70 litres (6.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Sedona Orange, Merlot Sunglo/Vivid Black, Cool Blue Pearl/Vivid Black, Arctic White,
Concord Purple, Vivid Black,
Fire Engine Red, Vivid Black,
Dark Peace Officer Blue |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicato |
|
Electrical
|
Sealed, maintenance-free battery, 12V, 28-amp/hour, 370 cca. Charging: Three-phase, 50-amp system. |
|
Factory warranty
|
24 months, unlimited mileage (US) |
