General information |
|
Motorcycle name
|

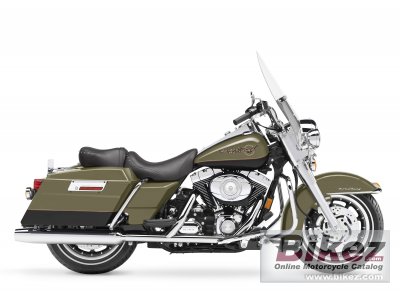

Harley-Davidson FLHR Road King |
|
Year of manufacture
|
2007 |
|
Type
|
Touring |
| Price as new | US$ 17345. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1573.0 ccm (95.98 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Twin Cam 96 engine. |
|
Torque
|
125.6 Nm (12.8 kgf-m or 92.6 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.3 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Fuel consumption
|
5.22 litres/100 km (19.2 km/l or 45.06 mpg) |
|
Greenhouse gases
|
121.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, square-section backbone with twin downtubes |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3 mm telescopic, cartridge-style damping |
|
Rear suspension
|
Short, air-adjustable shock |
|
Front tire
|
MT90-B16 |
|
Rear tire
|
MT85-B16 |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
334.3 kg (737.0 pounds) |
|
Weight incl. oil, gas, etc
|
348.8 kg (769.0 pounds) |
|
Seat height
|
759 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2380 mm (93.7 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
18.92 litres (5.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Vivid black, black cherry pearl, black pearl, fire red pearl, deep cobalt pearl, white gold pearl (new), two-tone suede blue pearl and vivid black (new), two-tone olive pearl and vivid black (new), two-tone black cherry pearl and pewter pearl (new), two-t |
|
Starter
|
Electric |
|
Comments
|
Cruise control. |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Brake fluid
|
DOT 4 |
|
Spark plugs
|
NGK DCPR8E, NGK DCPR8EIX |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
