General information |
|
Motorcycle name
|

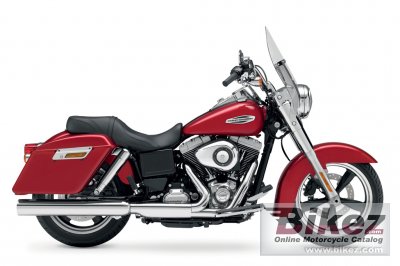

Harley-Davidson FLD Dyna Switchback |
|
Model year
|
2012 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 15999. Euro 13444. UK £ 16895. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1688.0 ccm (103.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 103™ |
|
Torque
|
135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3500 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
98.4 x 111.3 mm (3.9 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Lubrication system
|
Pressurized, dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Primary Drive Chain, 34/46 ratio. Final Drive Belt, 32/66 ratio. |
|
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
|
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
New 2-into-1 chrome exhaust with straight-cut muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded |
|
Rake (fork angle)
|
29.9° |
|
Trail
|
148 mm (5.8 inches) |
|
Front suspension
|
41.3 mm fork with 20 mm cartridge damping and triple rate spring |
|
Front wheel travel
|
98 mm (3.9 inches) |
|
Rear suspension
|
Nitrogen charged 36 mm monotube damper with 5 step preload adjustable dual rate spring. Mild steel, rectangular tube sections, stamped junctions; MIG welded swingarm. |
|
Rear wheel travel
|
54 mm (2.1 inches) |
|
Front tire
|
130/70-B18 |
|
Rear tire
|
160/70-B17 |
|
Front brakes
|
Single disc. 4-piston fixed. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 2-piston torque-free floating. Optional ABS. |
|
Diameter
|
292 mm (11.5 inches) |
|
Wheels
|
Black 5-Spoke Cast Aluminum with highlighted rims |
|
Seat
|
One-piece, two-up seat with custom stitching |
|
Physical measures and capacities |
|
Dry weight
|
315.7 kg (696.0 pounds) |
|
Weight incl. oil, gas, etc
|
325.7 kg (718.0 pounds) |
|
Seat height
|
663 mm (26.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2357 mm (92.8 inches) |
|
Ground clearance
|
109 mm (4.3 inches) |
|
Wheelbase
|
1595 mm (62.8 inches) |
|
Fuel capacity
|
17.79 litres (4.70 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Brilliant Silver Pearl, Ember Red Sunglo |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
|
Electrical
|
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca |
|
Factory warranty
|
2 years, unlimited mileage. |
|
Comments
|
Detachable hard saddlebags
and quick-detach windshield. |
