General information |
|
Model
|

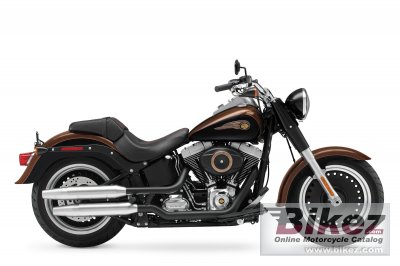

Harley-Davidson Fat Boy Lo 110th Anniversary |
|
Year model
|
2013 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 19499. Euro 22255. UK £ 17195. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1688.0 ccm (103.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 103B™ |
|
Torque
|
133.8 Nm (13.6 kgf-m or 98.7 ft.lbs) @ 3000 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
98.4 x 111.3 mm (3.9 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Lubrication system
|
Dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Chain, 34/46 ratio primary drive |
|
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
|
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Denim Black and Satin Chrome, over/under shotgun exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
31.6° |
|
Trail
|
147 mm (5.8 inches) |
|
Front tire
|
140/75-R17 |
|
Rear tire
|
200/55-R17 |
|
Front brakes
|
Single disc. Dual piston |
|
Rear brakes
|
Single disc. Single piston |
|
Wheels
|
Black, Bullet Hole Disc Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
313.0 kg (690.0 pounds) |
|
Weight incl. oil, gas, etc
|
330.2 kg (728.0 pounds) |
|
Seat height
|
616 mm (24.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2395 mm (94.3 inches) |
|
Ground clearance
|
122 mm (4.8 inches) |
|
Wheelbase
|
1638 mm (64.5 inches) |
|
Fuel capacity
|
18.93 litres (5.00 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Color options
|
Anniversary Vintage Bronze/Anniversary Vintage Black |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
|
Light
|
High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
|
Comments
|
Special Edition celebrating HD´s 110th Anniversary. Model called Fat Boy Special in Europe. |
