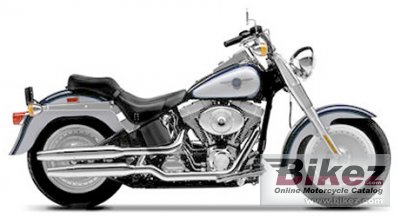

2001 Harley-Davidson Fat Boy Injection. Picture by Harley-Davidson. Published with permission..
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Harley-Davidson Fat Boy Injection |
|
Year model
|
2001 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1449.0 ccm (88.42 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
64.0 HP (46.7 kW)) @ 5300 RPM |
|
Torque
|
105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 3000 RPM |
|
Top speed
|
173.0 km/h (107.5 mph) |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front wheel travel
|
129 mm (5.1 inches) |
|
Rear wheel travel
|
103 mm (4.1 inches) |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
320.0 kg (705.5 pounds) |
|
Seat height
|
647 mm (25.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1638 mm (64.5 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 01 Harley-Davidson Fat Boy Injection discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Engine performance for the 2001 Harley-Davidson Fat Boy Injection:
 (86.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
