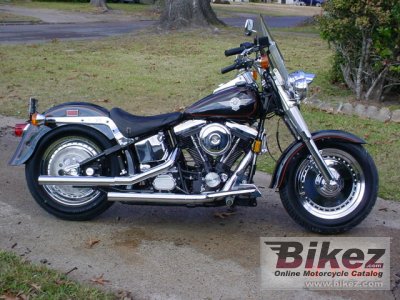

Harley-Davidson Fat Boy 19911991 Harley-Davidson Fat Boy specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Harley-Davidson Fat Boy |
| Model year | 1991 |
| Category | Custom / cruiser |
| Rating | 3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1337.0 ccm (81.58 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 67.0 HP (48.9 kW)) @ 5000 RPM |
| Torque | 97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 2350 RPM |
| Top speed | 148.0 km/h (92.0 mph) |
| Compression | 8.5:1 |
| Bore x stroke | 88.8 x 108.0 mm (3.5 x 4.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Keihin, 38mm |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Analogue CDI |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Dry, multiple discs, cable operated |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 39mm Telescopic forks |
| Rear suspension | Dual remote shocks adjustable preload, |
| Front tire | 130/90-16 |
| Rear tire | 130/90-16 |
| Front brakes | Single disc. Four-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Four-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 298.0 kg (657.0 pounds) |
| Overall length | 2370 mm (93.3 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 91 Harley-Davidson Fat Boy discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
