Harley-Davidson Electra Glide Fire - Rescue 20132013 Harley-Davidson Electra Glide Fire - Rescue specifications, pictures, reviews and rating |

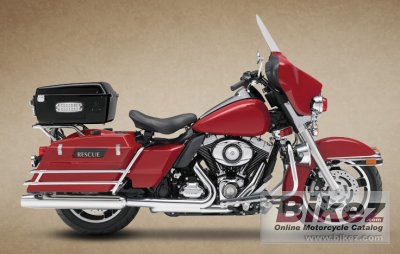

2013 Harley-Davidson Electra Glide Fire - Rescue. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| Today, with more vehicles on the road than ever, performance is measured by delivering the power and control necessary for rapid response. that starts with our powerful and reliable twin cam 103™ engine. With 102 ft. lbs. of torque and electronic sequential port fuel injection, it transitions from patrol to pursuit in an instant, giving offi cers the advantage. |
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson Electra Glide Fire - Rescue |
| Year of manufacture | 2013 |
| Type | Touring |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1688.0 ccm (103.00 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
| Torque | 135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 98.4 x 111.2 mm (3.9 x 4.4 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Overhead Valves (OHV) |
| Lubrication system | Pressurized, dry-sump with oil cooler |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate, wet |
| Driveline | Chain, 34/46 ratio |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded |
| Rake (fork angle) | 26.0° |
| Trail | 170 mm (6.7 inches) |
| Front suspension | 41.3 mm telescopic |
| Rear suspension | Air-adjustable |
| Front tire | 130/80-B17 |
| Rear tire | 180/65-B16 |
| Front brakes | Single disc. ABS |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Dry weight | 367.0 kg (809.0 pounds) |
| Weight incl. oil, gas, etc | 380.1 kg (838.0 pounds) |
| Overall height | 1450 mm (57.1 inches) |
| Overall length | 2451 mm (96.5 inches) |
| Overall width | 970 mm (38.2 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1626 mm (64.0 inches) |
| Fuel capacity | 22.71 litres (6.00 US gallons) |
| Reserve fuel capacity | 3.79 litres (1.00 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | Red |
| Starter | Electric |
| Electrical | Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca (per Battery Council International Rating) battery. |
| Factory warranty | 24 months unlimited milage |
| Comments | Bead-retention tires designed to remain on wheel during sudden loss of pressure; sealed, automotive-style wheel bearings requiring no end play adjustments and service interval of 100,000 miles (160,000 km). |
