General information |
|
Motorcycle name
|

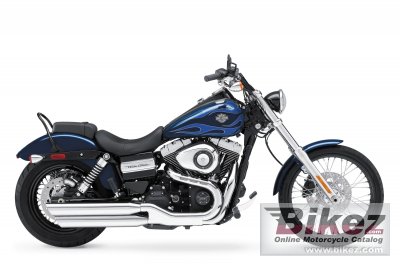

Harley-Davidson Dyna Wide Glide |
|
Year model
|
2013 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 14999. Euro 15795. UK £ 12395. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1688.0 ccm (103.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 103™ |
|
Torque
|
134.2 Nm (13.7 kgf-m or 99.0 ft.lbs) @ 3000 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
98.4 x 111.3 mm (3.9 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Primary chain, 34/46 ratio |
|
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
|
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, Tommy Gun 2-1-2 collector exhaust with dual mufflers. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
132 mm (5.2 inches) |
|
Front tire
|
80/90-H21 |
|
Rear tire
|
180/60-B17 |
|
Front brakes
|
Single disc. 4-piston fixed |
|
Rear brakes
|
Single disc. 2-piston torque-free floating |
|
Wheels
|
Black, Laced Steel |
|
Physical measures and capacities |
|
Dry weight
|
294.8 kg (650.0 pounds) |
|
Weight incl. oil, gas, etc
|
309.8 kg (683.0 pounds) |
|
Seat height
|
648 mm (25.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2446 mm (96.3 inches) |
|
Ground clearance
|
102 mm (4.0 inches) |
|
Wheelbase
|
1715 mm (67.5 inches) |
|
Fuel capacity
|
17.79 litres (4.70 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Midnight Pearl with Flames, Ember Red Sunglo with Flames, Big Blue Pearl with Flames, Vivid Black with Flames, Vivid Black. |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
|
Light
|
High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings |
