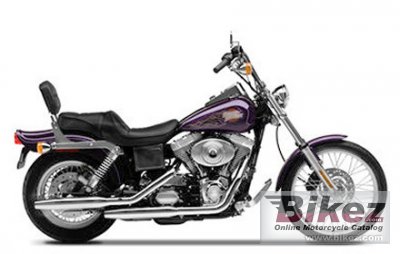

2001 Harley-Davidson Dyna Wide Glide. Picture by Harley-Davidson. Published with permission..
Submit more pictures.
|
|
|
General information |
|
Model name
|
Harley-Davidson Dyna Wide Glide |
|
Year
|
2001 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1449.0 ccm (88.42 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
68.0 HP (49.6 kW)) @ 5500 RPM |
|
Torque
|
106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 2900 RPM |
|
Top speed
|
170.0 km/h (105.6 mph) |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet 9-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular. Rectangular section backbone. |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
39 mm w/ polished aluminum fork triple clamp and dual-rate springs |
|
Front wheel travel
|
142 mm (5.6 inches) |
|
Rear suspension
|
Coil over shock |
|
Rear wheel travel
|
109 mm (4.3 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
MT90-B16 |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
287.0 kg (632.7 pounds) |
|
Weight incl. oil, gas, etc
|
300.0 kg (661.4 pounds) |
|
Power/weight ratio
|
0.2369 HP/kg |
|
Seat height
|
679 mm (26.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2357 mm (92.8 inches) |
|
Ground clearance
|
153 mm (6.0 inches) |
|
Wheelbase
|
1678 mm (66.1 inches) |
|
Fuel capacity
|
19.68 litres (5.20 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
