| General information |
|---|

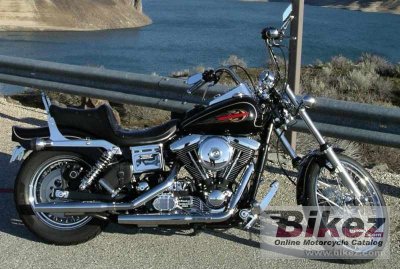

| Model: | Harley-Davidson Dyna Wide Glide |
| Year: | 1996 |
| Category: | Custom / cruiser |
| Rating: | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 1338.0 ccm (81.64 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 57.0 HP (41.6 kW)) @ 5000 RPM |
| Torque: | 97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 2350 RPM |
| Compression: | 8.5:1 |
| Bore x stroke: | 88.8 x 108.0 mm (3.5 x 4.3 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor. Keihin, 38mm |
| Fuel control: | Overhead Valves (OHV) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Lubrication system: | Dry sump |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Wet 9-plate |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel, tubular, rectangular section backbone |
| Front suspension: | Telescopic fors |
| Rear suspension: | Coil-over shock |
| Front tire: | 80/90-21 |
| Rear tire: | 130/90-16 |
| Front brakes: | Single disc. Four-piston calipers. |
| Diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc. Four-piston calipers. |
| Diameter: | 292 mm (11.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 271.0 kg (597.5 pounds) |
| Weight incl. oil, gas, etc: | 295.0 kg (650.4 pounds) |
| Power/weight ratio: | 0.2103 HP/kg |
| Seat height: | 754 mm (29.7 inches) If adjustable, lowest setting. |
| Fuel capacity: | 19.00 litres (5.02 US gallons) |
| Oil capacity: | 2.80 litres (2.96 US quarts) |
| Other specifications |
|---|
| Color options: | Black, red, blue |
| Starter: | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * |
|---|
| Engine oil: | SAE 20W-50 |
| Oil filter: | K & N KN-173C |
| Brake fluid: | DOT 5 Silicone |
| Battery: | GYZ20HL |
| Spark plugs: | NGK BPR5ES-11 |
| Idle speed: | 1000 RPM |
| Belt teeth: | 133 |
| Belt width: | 1 1/2 in |
| Pulley teeth: | 32/70 (front/rear) |
| Fork tube size: | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
