Harley-Davidson Dyna Super Glide 19981998 Harley-Davidson Dyna Super Glide specifications, pictures, reviews and rating |

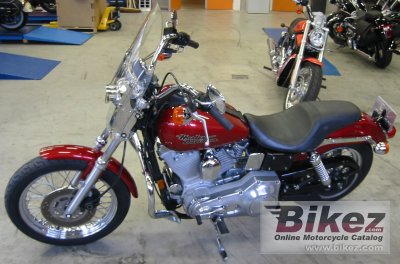

1998 Harley-Davidson Dyna Super Glide. Submitted by anonymous user..
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson Dyna Super Glide |
| Year model | 1998 |
| Type | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1338.0 ccm (81.64 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 56.0 HP (40.9 kW)) @ 5000 RPM |
| Torque | 99.0 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 2350 RPM |
| Top speed | 165.0 km/h (102.5 mph) |
| Compression | 8.5:1 |
| Bore x stroke | 88.8 x 108.0 mm (3.5 x 4.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Analogue CDI |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet 9-plate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, tubular, rectangular section backbone, stamped, cast and forged junctions, forged fender supports. |
| Front suspension | 39 mm with polished aluminum fork triple clamp and dual-rate springs |
| Rear suspension | Coil over shock |
| Front tire | 100/90-19 |
| Rear tire | MT90-B16 |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 271.0 kg (597.5 pounds) |
| Weight incl. oil, gas, etc | 300.0 kg (661.4 pounds) |
| Power/weight ratio | 0.2066 HP/kg |
| Seat height | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 20W-50 |
| Oil filter | EMGO Black 10-82430 |
| Brake fluid | DOT 5 Silicone |
| Battery | GYZ20HL |
| Spark plugs | NGK DCPR7E, DCPR7EIX |
| Idle speed | 1000 RPM |
| Belt teeth | 133 |
| Belt width | 1 1/2 |
| Pulley teeth | 32/70 (front/rear) |
| Tire pressure front | 29 PSI (2 Bar or 200 kPa) |
| Tire pressure rear | 36 PSI (2.5 Bar or 250 kPa) |
| Fork tube size | 39 mm (1.5 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
