General information |
Model
|

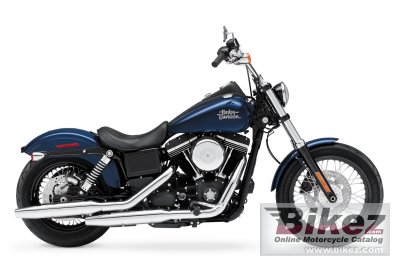

Harley-Davidson Dyna Street Bob |
Year of manufacture
|
2013 |
Type
|
Custom / cruiser |
Price as new | US$ 12999. Euro 13295. UK £ 10495. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
1573.3 ccm (96.00 cubic inches) |
Type of engine
|
V2, four-stroke |
Engine details
|
Air-cooled, Twin Cam 96™ |
Torque
|
124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000 RPM |
Compression
|
9.2:1 |
Bore x stroke
|
95.3 x 111.3 mm (3.8 x 4.4 inches) |
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
Lubrication system
|
Dry sump |
Cooling system
|
Air |
Gearbox
|
6-speed |
Transmission type
|
Belt (final drive) |
Clutch
|
Multi-plate with diaphragm spring in oil bath |
Driveline
|
Primary chain, 57/38 ratio |
Fuel consumption
|
5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
Greenhouse gases
|
126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Exhaust system
|
Chrome, staggered, straight-cut shorty exhaust with dual mufflers |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
29.0° |
Trail
|
119 mm (4.7 inches) |
Front tire
|
100/90-H19 |
Rear tire
|
160/70-V17 |
Front brakes
|
Single disc. Dual-piston |
Rear brakes
|
Single disc. Single-piston |
Wheels
|
Black, Laced Steel |
Physical measures and capacities |
Dry weight
|
289.9 kg (639.0 pounds) |
Weight incl. oil, gas, etc
|
304.8 kg (672.0 pounds) |
Seat height
|
648 mm (25.5 inches) If adjustable, lowest setting. |
Overall length
|
2357 mm (92.8 inches) |
Ground clearance
|
125 mm (4.9 inches) |
Wheelbase
|
1631 mm (64.2 inches) |
Fuel capacity
|
17.79 litres (4.70 US gallons) |
Oil capacity
|
2.80 litres (2.96 US quarts) |
Other specifications |
Color options
|
Hard Candy Lucky Green Flake, Hard Candy Coloma Gold Flake, Hard Candy Big Red Flake, Chrome Yellow Pearl, Big Blue Pearl, Vivid Black, Ember Red Sunglo, Midnight Pearl, Candy Orange, Chrome Yellow Pearl . |
Starter
|
Electric |
Instruments
|
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
Light
|
High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings |
Comments
|
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren. |
