General information |
|
Model name
|

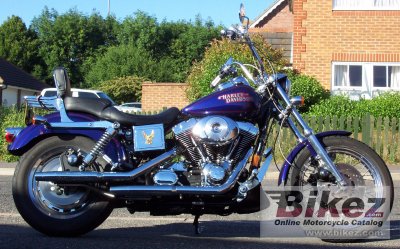

Harley-Davidson Dyna Low Rider |
|
Year model
|
1999 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1450.0 ccm (88.48 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
68.0 HP (49.6 kW)) @ 5400 RPM |
|
Top speed
|
165.0 km/h (102.5 mph) |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin oil filter |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
114 mm (4.5 inches) |
|
Front suspension
|
39 mm with polished aluminum fork triple clamp and dual-rate springs |
|
Rear suspension
|
Coil over dual shock |
|
Front tire
|
100/90-H19 |
|
Rear tire
|
160/70-V17 |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Floating disc. Two-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
279.0 kg (615.1 pounds) |
|
Power/weight ratio
|
0.2437 HP/kg |
|
Seat height
|
640 mm (25.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2364 mm (93.1 inches) |
|
Ground clearance
|
142 mm (5.6 inches) |
|
Wheelbase
|
1664 mm (65.5 inches) |
|
Fuel capacity
|
18.50 litres (4.89 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Red, silver, blue, black |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
K & N KN-171B |
|
Brake fluid
|
DOT 5 Silicone |
|
Battery
|
YTX20HL-BS |
|
Spark plugs
|
NGK DCPR7E, NGK DCPR7EIX |
|
Idle speed
|
1000 RPM |
|
Belt teeth
|
133 |
|
Belt width
|
1 1/2 in |
|
Pulley teeth
|
32/70 (front/rear) |
|
Tire pressure front
|
29 PSI (2 Bar or 200 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
39 mm (1.5 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
