General information |
|
Motorcycle name
|

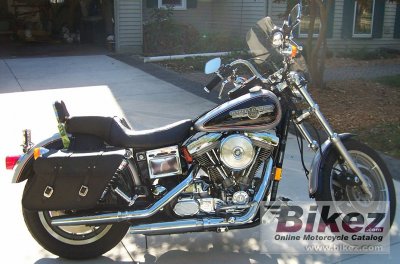

Harley-Davidson Dyna Glide Custom |
|
Model year
|
1992 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 5888. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1337.0 ccm (81.58 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 2350 RPM |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
88.8 x 108.0 mm (3.5 x 4.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. 38 mm Keihin |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Analogue CDI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet 9-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame. Rectangular section backbone. Stamped, cast and forged junctions. Forged fender supports. |
|
Front suspension
|
49 mm with polished aluminum fork triple clamp and dual-rate springs |
|
Rear suspension
|
Coil over shock |
|
Front tire
|
100/90-19 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Double disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
271.0 kg (597.5 pounds) |
|
Weight incl. oil, gas, etc
|
280.0 kg (617.3 pounds) |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted analogue instrumentation |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
K & N - KN-173C |
|
Brake fluid
|
DOT 5 Silicone |
|
Battery
|
YTX20L-BS |
|
Spark plugs
|
NGK BPR5ES-11 |
|
Idle speed
|
1000-1050 RPM |
|
Sprockets
|
32/70 (front/rear) |
|
Belt teeth
|
133 |
|
Belt width
|
1.5 in |
|
Tire pressure front
|
29 PSI (2 Bar or 200 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
39 mm (1.5 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
