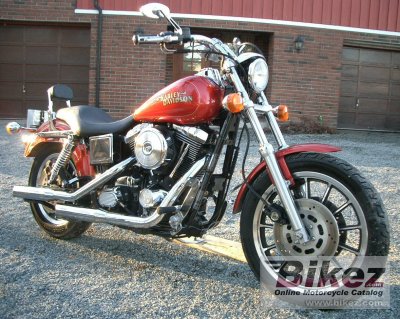

Harley-Davidson Dyna Glide Convertible 19971997 Harley-Davidson Dyna Glide Convertible specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Harley-Davidson Dyna Glide Convertible |
| Model year | 1997 |
| Category | Custom / cruiser |
| Rating | 3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1338.0 ccm (81.64 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 55.0 HP (40.1 kW)) @ 5000 RPM |
| Torque | 97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 2350 RPM |
| Top speed | 165.0 km/h (102.5 mph) |
| Compression | 8.5:1 |
| Bore x stroke | 88.8 x 108.0 mm (3.5 x 4.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 40mm Keihin CV |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 39mm stanchions |
| Front wheel travel | 175 mm (6.9 inches) |
| Rear suspension | Dual dampers, adjustable for preload |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 100/90-´19 |
| Rear tire | 130/90-´16 |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 282.0 kg (621.7 pounds) |
| Power/weight ratio | 0.1950 HP/kg |
| Seat height | 704 mm (27.7 inches) If adjustable, lowest setting. |
| Fuel capacity | 18.50 litres (4.89 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Color options | Red, blue, black |
| Starter | Electric |
| Electrical | 12V, 20 Ah battery. |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 20W-50 |
| Brake fluid | DOT 5 Silicone |
| Battery | YB16HL-A-CX |
| Spark plugs | NGK BPR5ES-11 |
| Idle speed | 1000 RPM |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
