General information |
|
Motorcycle name
|

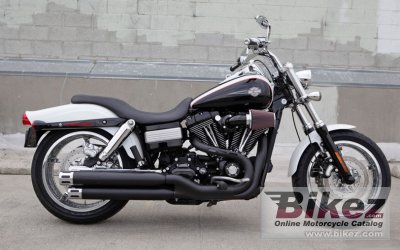

Harley-Davidson Dyna Fat Bob Dark Custom |
|
Model year
|
2013 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 15499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1688.0 ccm (103.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 103™ |
|
Torque
|
135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3500 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
98.4 x 111.3 mm (3.9 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Lubrication system
|
Dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Chain, 34/46 ratio primar drive |
|
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
|
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
124 mm (4.9 inches) |
|
Front tire
|
130/90-B16 |
|
Rear tire
|
180/70-B16 |
|
Front brakes
|
Double disc. 4-piston fixed |
|
Rear brakes
|
Single disc. 2-piston torque-free floating |
|
Wheels
|
Machined, Aluminum Slotted Disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
320.2 kg (706.0 pounds) |
|
Seat height
|
663 mm (26.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2329 mm (91.7 inches) |
|
Ground clearance
|
124 mm (4.9 inches) |
|
Wheelbase
|
1621 mm (63.8 inches) |
|
Fuel capacity
|
18.93 litres (5.00 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Black Denim. |
|
Instruments
|
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
|
Light
|
High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings |
