General information |
|
Model
|

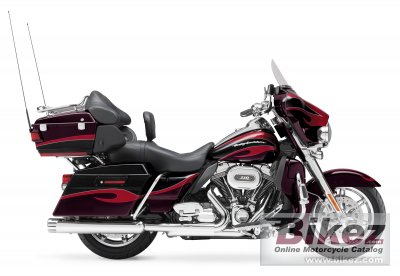

Harley-Davidson CVO Ultra Classic Electra Glide |
|
Year of manufacture
|
2013 |
|
Type
|
Touring |
| Price as new | US$ 37599. Euro 38795. UK £ 29995. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.2 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1802.7 ccm (110.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 110™ |
|
Torque
|
160.0 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3750 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
101.6 x 111.3 mm (4.0 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Chain, 34/46 ratio primary drive |
|
Fuel consumption
|
5.74 litres/100 km (17.4 km/l or 40.98 mpg) |
|
Greenhouse gases
|
133.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. 4-piston |
|
Rear brakes
|
Single disc. 2-piston |
|
Wheels
|
Mirror Chrome Chisel Custom Wheels |
|
Physical measures and capacities |
|
Dry weight
|
403.2 kg (889.0 pounds) |
|
Weight incl. oil, gas, etc
|
420.5 kg (927.0 pounds) |
|
Seat height
|
706 mm (27.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2510 mm (98.8 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Anniversary Diamond Dust and Obsidian with Palladium Graphics, Typhoon Maroon/Black Diamond/Burgundy Blaze with Thunderblade Graphics, Stardust Silver/Dark Slate/Titanium Dust with Thunderblade Graphics, Tribal Orange/Dark Slate/Inferno Orange with Thunde |
|
Starter
|
Electric |
|
Instruments
|
Road Tech zumo 660 with integrated dash pad mount |
|
Light
|
High beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS |
|
Carrying capacity
|
Saddle bags, top box |
|
Comments
|
CVO is HD´s Custom Vehicle Operation |
