Harley-Davidson 1340 Softail Springer 19931993 Harley-Davidson 1340 Softail Springer specifications, pictures, reviews and rating |

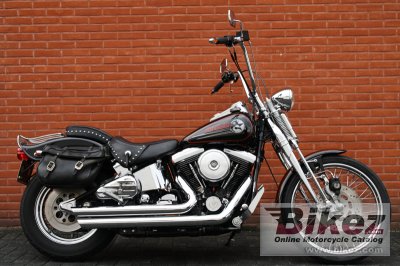

1993 Harley-Davidson 1340 Softail Springer. Picture submitted by anonymous user.. Submit more pictures.
| General information | |
|---|---|
| Model | Harley-Davidson 1340 Softail Springer |
| Year | 1993 |
| Category | Custom / cruiser |
| Rating | 2.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1338.0 ccm (81.64 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 48.0 HP (35.0 kW)) @ 4900 RPM |
| Torque | 86.3 Nm (8.8 kgf-m or 63.7 ft.lbs) @ 2400 RPM |
| Compression | 8.5:1 |
| Bore x stroke | 88.8 x 108.0 mm (3.5 x 4.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Keihin CV, 40mm |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 1334mm Springer |
| Rear suspension | Monoshock Softail |
| Front tire | MH90-21 |
| Rear tire | 130/90-16 |
| Front brakes | Single disc |
| Diameter | 290 mm (11.4 inches) |
| Rear brakes | Single disc |
| Diameter | 290 mm (11.4 inches) |
| Physical measures and capacities | |
| Dry weight | 287.0 kg (632.7 pounds) |
| Power/weight ratio | 0.1672 HP/kg |
| Seat height | 663 mm (26.1 inches) If adjustable, lowest setting. |
| Fuel capacity | 15.90 litres (4.20 US gallons) |
| Other specifications | |
| Starter | Electric |
