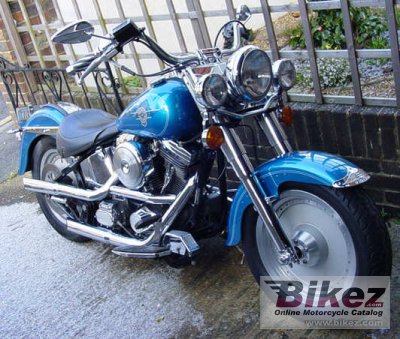

Harley-Davidson 1340 Softail Fat Boy 19951995 Harley-Davidson 1340 Softail Fat Boy specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson 1340 Softail Fat Boy |
| Model year | 1995 |
| Category | Custom / cruiser |
| Rating | 3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1338.0 ccm (81.64 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 48.0 HP (35.0 kW)) @ 4900 RPM |
| Torque | 86.3 Nm (8.8 kgf-m or 63.7 ft.lbs) @ 2400 RPM |
| Compression | 8.5:1 |
| Bore x stroke | 88.8 x 108.0 mm (3.5 x 4.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Keihin, 38mm |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Analogue CDI |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Dry multiple discs, cable operated |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 39mm Telescopic forks |
| Rear suspension | Dual remote shocks, adjustable preload, |
| Front tire | 130/90-16 |
| Rear tire | 130/90-16 |
| Front brakes | Single disc. Four-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Four-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 295.0 kg (650.4 pounds) |
| Weight incl. oil, gas, etc | 320.0 kg (705.5 pounds) |
| Power/weight ratio | 0.1627 HP/kg |
| Seat height | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Other specifications | |
| Starter | Electric |
