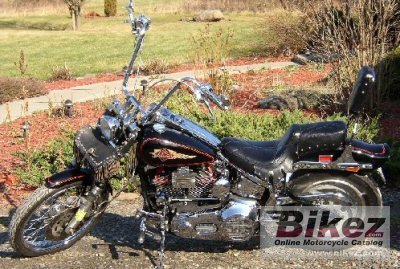

1995 Harley-Davidson 1340 Softail Custom. Picture credits - 95 Soft Tail Custom.
Submit more pictures.
|
|
| General information |
|---|
| Model | Harley-Davidson 1340 Softail Custom |
| Year | 1995 |
| Category | Custom / cruiser |
| Rating | 3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 1338.0 ccm (81.64 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 48.0 HP (35.0 kW)) @ 4900 RPM |
| Torque | 86.3 Nm (8.8 kgf-m or 63.7 ft.lbs) @ 2400 RPM |
| Compression | 8.5:1 |
| Bore x stroke | 88.8 x 108.0 mm (3.5 x 4.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Analogue CDI |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Dry, multiple discs, cable operated |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Telescopic forks |
| Rear suspension | Dual shocks |
| Front tire | 140/90-16 |
| Rear tire | 140/90-16 |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 280.0 kg (617.3 pounds) |
| Weight incl. oil, gas, etc | 293.0 kg (646.0 pounds) |
| Power/weight ratio | 0.1714 HP/kg |
| Seat height | 678 mm (26.7 inches) If adjustable, lowest setting. |
| Overall length | 2400 mm (94.5 inches) |
| Overall width | 1638 mm (64.5 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications |
|---|
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * |
|---|
| Engine oil | SAE 20W-50 |
| Brake fluid | DOT 5 Silicone |
| Spark plugs | NGK BPR5ES-11 |
| Idle speed | 1000 RPM |
| Tire pressure front | 30 PSI (2.1 Bar or 210 kPa) |
| Tire pressure rear | 36 PSI (2.5 Bar or 250 kPa) |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
