Harley-Davidson 1200 Custom 110th Anniversary 20132013 Harley-Davidson 1200 Custom 110th Anniversary specifications, pictures, reviews and rating |

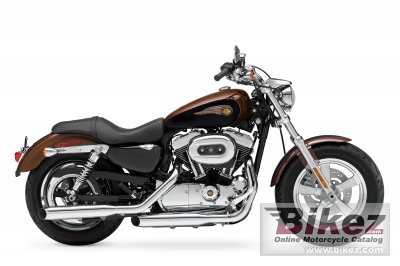

2013 Harley-Davidson 1200 Custom 110th Anniversary. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| Each Anniversary Edition Harley-Davidson is a unique masterpiece, with its very own work of art marking it as part of this historic celebration. Forged of solid bronze and plated with black nickel, each Anniversary medallion is then distressed to highlight the bronze. And since no two can ever distress the same, each becomes a completely unique commemorative ´sculpture.´ The finishing touch is a bold gold cloisonné showing the Harley-Davidson Bar and Shield. |
| General information | |
|---|---|
| Model name | Harley-Davidson 1200 Custom 110th Anniversary |
| Year of manufacture | 2013 |
| Type | Custom / cruiser |
| Price as new | US$ 11699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1201.3 ccm (73.30 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Air-cooled, Evolution® |
| Torque | 107.1 Nm (10.9 kgf-m or 79.0 ft.lbs) @ 3250 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection |
| Lubrication system | Dry-sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Chain, 57/38 ratio primary drive |
| Fuel consumption | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Greenhouse gases | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome, staggered exhaust with slash-cut mufflers |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 29.9° |
| Trail | 107 mm (4.2 inches) |
| Front tire | 130/90-B16 |
| Rear tire | 150/80-B16 |
| Front brakes | Single disc. Dual piston |
| Rear brakes | Single disc. Single piston |
| Wheels | Chrome, 5-Spoke Cast Aluminum |
| Physical measures and capacities | |
| Dry weight | 250.8 kg (553.0 pounds) |
| Weight incl. oil, gas, etc | 259.9 kg (573.0 pounds) |
| Seat height | 676 mm (26.6 inches) If adjustable, lowest setting. |
| Overall length | 2220 mm (87.4 inches) |
| Ground clearance | 112 mm (4.4 inches) |
| Wheelbase | 1521 mm (59.9 inches) |
| Fuel capacity | 17.03 litres (4.50 US gallons) |
| Oil capacity | 2.60 litres (2.75 US quarts) |
| Other specifications | |
| Color options | Anniversary Vintage Bronze/Anniversary Vintage Black |
| Starter | Electric |
| Instruments | Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional) |
| Comments | Special Edition celebrating HD´s 110th Anniversary. |
