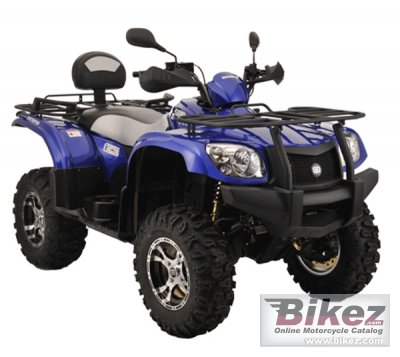

Goes 520 Max Limited 20112011 Goes 520 Max Limited specifications, pictures, reviews and rating |
| Goes' profilation of this bike |
| To celebrate its 3rd anniversary, the 520 Ltd is bringing you the following new features: gas suspension, hand guards, 2-tone seat, black and chrome alu rims, LCD display,New tire pattern and blue metallic painting. |
| General information | |
|---|---|
| Model name | Goes 520 Max Limited |
| Year of manufacture | 2011 |
| Type | ATV |
| Rating | 3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 493.0 ccm (30.08 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 32.2 HP (23.5 kW)) @ 7000 RPM |
| Torque | 36.0 Nm (3.7 kgf-m or 26.6 ft.lbs) @ 5500 RPM |
| Compression | 10.2:1 |
| Bore x stroke | 87.5 x 82.0 mm (3.4 x 3.2 inches) |
| Fuel system | Carburettor. Mikuni BSR 36 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double A-arm, preload adjustable. Gas shocks. |
| Rear suspension | Independent double A-arm, preload adjustable. Gas shocks. |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Physical measures and capacities | |
| Dry weight | 312.0 kg (687.8 pounds) |
| Power/weight ratio | 0.1031 HP/kg |
| Overall height | 1230 mm (48.4 inches) |
| Overall length | 2320 mm (91.3 inches) |
| Overall width | 1170 mm (46.1 inches) |
| Ground clearance | 290 mm (11.4 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Reserve fuel capacity | 2.00 litres (0.53 US gallons) |
| Other specifications | |
| Color options | Blue |
| Starter | Electric |
| Instruments | Digital |
| Electrical | 12V |
| Light | Two fornt lights |
| Carrying capacity | Front and rear rack. |
