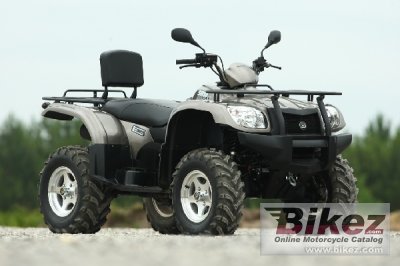

Goes 520 Max 20102010 Goes 520 Max specifications, pictures, reviews and rating |
| Goes' profilation of this bike |
| Front locking differential, independent Rear Suspension, winch and aluminum rims. Nothing is missing on this unique package. |
| General information | |
|---|---|
| Model name | Goes 520 Max |
| Year model | 2010 |
| Type | ATV |
| Rating | 3.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 493.0 ccm (30.08 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 32.2 HP (23.5 kW)) @ 7000 RPM |
| Torque | 36.0 Nm (3.7 kgf-m or 26.6 ft.lbs) @ 5500 RPM |
| Compression | 10.2:1 |
| Bore x stroke | 87.5 x 82.0 mm (3.4 x 3.2 inches) |
| Fuel system | Carburettor. Mikuni BSR 36 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double A-arm, prel |
| Rear suspension | Independent double A-arm, prel |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Physical measures and capacities | |
| Dry weight | 312.0 kg (687.8 pounds) |
| Power/weight ratio | 0.1031 HP/kg |
| Overall height | 1230 mm (48.4 inches) |
| Overall length | 2320 mm (91.3 inches) |
| Overall width | 1170 mm (46.1 inches) |
| Ground clearance | 290 mm (11.4 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Other specifications | |
| Starter | Electric |
| Comments | 2WD - 4WD with locking front differential. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Goes 520 Max discussion group or the general Goes discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Goes 520 Max discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Goes bike | |
Engine performance for the 2010 Goes 520 Max:  (63.3 out of 100)Click here for complete rating. |
|
