General information |
|
Model
|

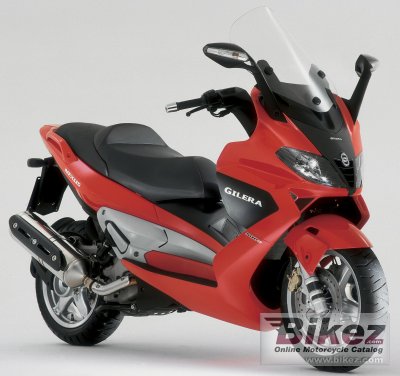

Gilera Nexus 500 |
|
Year of manufacture
|
2005 |
|
Type
|
Scooter |
|
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
460.0 ccm (28.07 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
40.1 HP (29.3 kW)) @ 7500 RPM |
|
Torque
|
43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 5500 RPM |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
92.0 x 69.0 mm (3.6 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic system - Magneti Marelli IAV. |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic inductive discharge, variable spark advance controlled by electronic injection |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Automatic dry centrifuge type |
|
Exhaust system
|
Two-way catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, high-tensile steel tubes |
|
Front suspension
|
Kayaba telehydraulic fork |
|
Front wheel travel
|
41 mm (1.6 inches) |
|
Rear suspension
|
Progressive POWER DRIVE, Kayaba gas shock absorber with spring preload |
|
Front tire
|
120/70-15 |
|
Rear tire
|
160/60-14 |
|
Front brakes
|
Double disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
101.0 kg (222.7 pounds) |
|
Weight incl. oil, gas, etc
|
216.0 kg (476.2 pounds) |
|
Power/weight ratio
|
0.3972 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2090 mm (82.3 inches) |
|
Overall width
|
765 mm (30.1 inches) |
|
Wheelbase
|
1515 mm (59.6 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
