| Gilera's profilation of this bike |
| The machine is particularly in its element on twisty roads, where the razor-sharp handling is complemented by a superb three-disc braking system and the double ignition “Master” engine. With a strong personality, aggressive design and cutting-edge technology, the Fuoco 500ie is ready to ride into uncharted territory. |
|
General information |
|
Motorcycle name
|

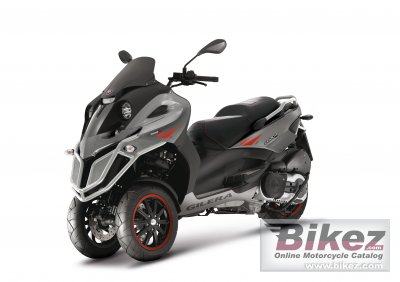

Gilera Fuoco 500ie |
|
Year model
|
2012 |
|
Type
|
Scooter |
|
Rating
|
3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
492.7 ccm (30.06 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Master engine |
|
Effect
|
40.0 HP (29.2 kW)) @ 7250 RPM |
|
Torque
|
42.2 Nm (4.3 kgf-m or 31.1 ft.lbs) @ 5500 RPM |
|
Bore x stroke
|
94.0 x 71.0 mm (3.7 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Ignition
|
Double ignition |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Automatic twist and go with C.V.T |
|
Fuel consumption
|
4.76 litres/100 km (21.0 km/l or 49.42 mpg) |
|
Greenhouse gases
|
110.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Emission details
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle trellis made of high strength steel tubes |
|
Front suspension
|
Parallelogram composed of four aluminium arms supporting two steering tubes, cantilevered suspension. Electro-hydraulic suspension locking system. |
|
Front wheel travel
|
85 mm (3.3 inches) |
|
Rear suspension
|
Oscillating engine fixed to the frame with a swingarm and two dual effect hydraulic shock absorbers with four-position spring preload. |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
120/70-12 |
|
Rear tire
|
140/70-14 |
|
Front brakes
|
Double disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Two front wheels. Die-cast aluminium alloy rims. |
|
Physical measures and capacities |
|
Dry weight
|
244.0 kg (537.9 pounds) |
|
Power/weight ratio
|
0.1639 HP/kg |
|
Overall length
|
2210 mm (87.0 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Wheelbase
|
1550 mm (61.0 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Reserve fuel capacity
|
1.80 litres (0.48 US gallons) |
|
Other specifications |
|
Color options
|
Red, black, gray |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Gilera Fuoco 500ie discussion group or the general Gilera discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Gilera bike
|
Design and look for the 2012 Gilera Fuoco 500ie:
 (76.6 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
