General information |
|
Model
|

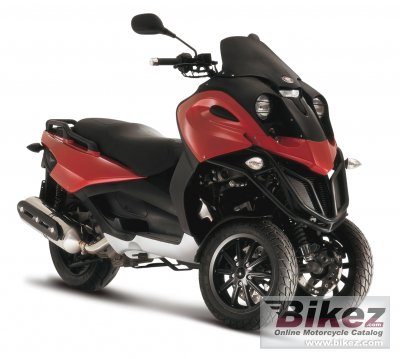

Gilera Fuoco 500ie |
|
Year model
|
2007 |
|
Type
|
Prototype / concept model |
|
Rating
|
3.6 See the detailed rating of design and look, fun-factor, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
492.7 ccm (30.06 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
40.0 HP (29.2 kW)) @ 7250 RPM |
|
Torque
|
42.2 Nm (4.3 kgf-m or 31.1 ft.lbs) @ 5500 RPM |
|
Top speed
|
145.0 km/h (90.1 mph) |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
94.0 x 71.0 mm (3.7 x 2.8 inches) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic inductive discharge and variable spark advance in electronic unit with electronic immobilizer. Fuel pump shutoff when bike tips over. Two spark plugs. |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Clutch
|
Dry centrifugal type with damping plugs |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle trellis made of high strength steel tubes |
|
Front suspension
|
Parallelogram composed of four aluminium arms supporting two steering tubes, cantilevered suspension. Travel: 85 mm. Electro-hydraulic suspension locking system. |
|
Front wheel travel
|
85 mm (3.3 inches) |
|
Rear suspension
|
Oscillating engine fixed to the frame with a swingarm and two dual effect hydraulic shock absorbers with four-position spring preload. Travel: 110 mm |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
120/70-12 |
|
Rear tire
|
140/70-14 |
|
Front brakes
|
Double disc. Stainless steel double disk, Ø 240 mm, two-piston caliper |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc. Stainless steel disk, Ø 280 mm, floating two-piston caliper |
|
Diameter
|
280 mm (11.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
244.0 kg (537.9 pounds) |
|
Power/weight ratio
|
0.1639 HP/kg |
|
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2160 mm (85.0 inches) |
|
Overall width
|
775 mm (30.5 inches) |
|
Wheelbase
|
1550 mm (61.0 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
