| General information |
|---|

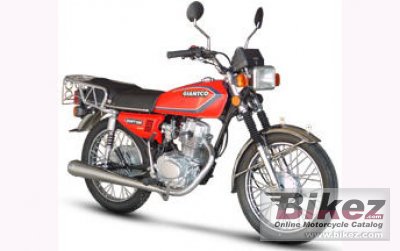

| Model: | Giantco Warrior 125 |
| Year: | 2010 |
| Category: | Allround |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.60 ccm (7.60 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 9.92 HP (7.2 kW)) @ 8000 RPM |
| Torque: | 8.80 Nm (0.9 kgf-m or 6.5 ft.lbs) @ 7500 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 56.5 x 49.5 mm (2.2 x 1.9 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor |
| Fuel control: | Overhead Valves (OHV) |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel |
| Front suspension: | Oil damped telescopic fork |
| Rear suspension: | Oil damped coil spring |
| Front tyre: | 2.75-18 |
| Rear tyre: | 3.00-18 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 109.0 kg (240.3 pounds) |
| Power/weight ratio: | 0.0910 HP/kg |
| Overall height: | 1,200 mm (47.2 inches) |
| Overall length: | 1,960 mm (77.2 inches) |
| Overall width: | 700 mm (27.6 inches) |
| Wheelbase: | 1,270 mm (50.0 inches) |
| Fuel capacity: | 11.00 litres (2.91 gallons) |
| Oil capacity: | 1.00 litres (0.07 quarts) |
| Other specifications |
|---|
| Color options: | Red/white |
| Starter: | Electric & kick |
| Comments: | Made in China. |
