Giantco Raider 110 20132013 Giantco Raider 110 specifications, pictures, reviews and rating |

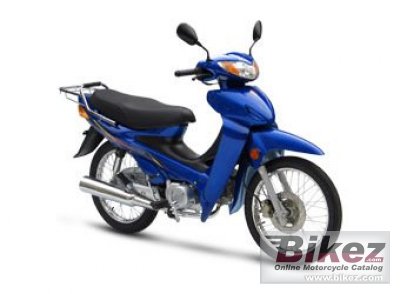

 2013 Giantco Raider 110. Picture credits - Giantco. Submit more pictures. |
|
| General information | |
|---|---|
| Model name | Giantco Raider 110 |
| Model year | 2013 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 107.0 ccm (6.53 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 7.0 HP (5.1 kW)) @ 8000 RPM |
| Torque | 6.9 Nm (0.7 kgf-m or 5.1 ft.lbs) @ 6000 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 52.4 x 49.5 mm (2.1 x 1.9 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Oil damped telescopic fork |
| Rear suspension | Oil damped coil spring |
| Front tire | 2.50-17 |
| Rear tire | 2.75-17 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 91.0 kg (200.6 pounds) |
| Weight incl. oil, gas, etc | 96.0 kg (211.6 pounds) |
| Power/weight ratio | 0.0766 HP/kg |
| Overall height | 1150 mm (45.3 inches) |
| Overall length | 1930 mm (76.0 inches) |
| Overall width | 710 mm (28.0 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 3.50 litres (0.92 US gallons) |
| Oil capacity | 0.90 litres (0.95 US quarts) |
| Other specifications | |
| Color options | Blue |
| Starter | Electric & kick |
| Comments | Chinese made cub. |
