| General information |
|---|

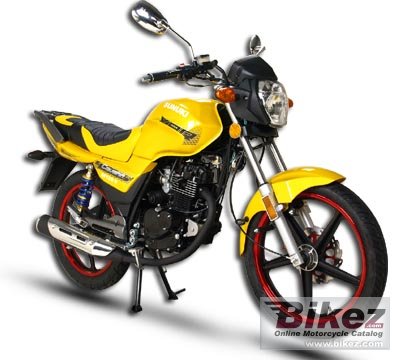

| Model: | Giantco HY125-3C |
| Year: | 2012 |
| Category: | Allround |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.60 ccm (7.60 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 9.92 HP (7.2 kW)) @ 8000 RPM |
| Torque: | 8.80 Nm (0.9 kgf-m or 6.5 ft.lbs) @ 7500 RPM |
| Compression: | 9.0:1 |
| Bore x stroke: | 56.6 x 56.6 mm (2.2 x 2.2 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor |
| Fuel control: | Overhead Valves (OHV) |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Oil damped telescopic fork |
| Rear suspension: | Oil damped coil spring |
| Front tyre: | 90/90-18 |
| Rear tyre: | 110/90-18 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 112.0 kg (246.9 pounds) |
| Power/weight ratio: | 0.0886 HP/kg |
| Overall height: | 1,075 mm (42.3 inches) |
| Overall length: | 2,015 mm (79.3 inches) |
| Overall width: | 750 mm (29.5 inches) |
| Wheelbase: | 1,285 mm (50.6 inches) |
| Fuel capacity: | 14.00 litres (3.70 gallons) |
| Oil capacity: | 1.00 litres (0.07 quarts) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Comments: | Hong Kong made bike. |
