| Giantco's profilation of this bike |

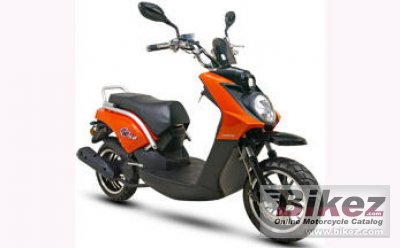

| GW is a 50cc fun scooter fitted with big 13-inch wheels and 220mm front disc for high-tech style and exceptional riding performance. |
|
General moped information |
|
Motorcycle name
|
Giantco GW 50 |
|
Model year
|
2010 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.2 ccm (3.00 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
2.5 HP (1.8 kW)) @ 7000 RPM |
|
Torque
|
3.2 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 4250 RPM |
|
Compression
|
6.9:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Oil damped telescopic fork |
|
Rear suspension
|
Oil damped coil spring |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
99.0 kg (218.3 pounds) |
|
Power/weight ratio
|
0.0249 HP/kg |
|
Overall height
|
1175 mm (46.3 inches) |
|
Overall length
|
1910 mm (75.2 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Wheelbase
|
1397 mm (55.0 inches) |
|
Fuel capacity
|
4.20 litres (1.11 US gallons) |
|
Oil capacity
|
0.90 litres (0.95 US quarts) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Electric & kick |
|
Comments
|
Chinese made scooter. |
